Fractionation Trays

THE BEST PARTNER HANBIT SOLTECH

Conventional Trays
Proven performance in all vapor/liquid contacting applications
For High Turndown

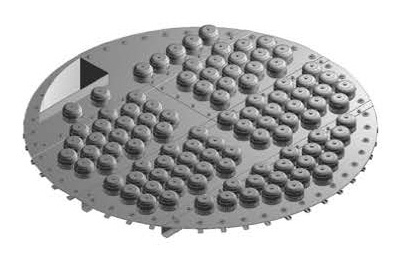

Bubble Cap Tray

For Simple Solutions

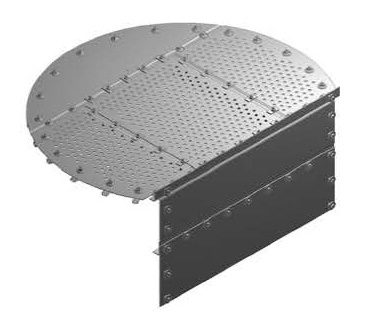

Sieve Tray

For Fouling Service

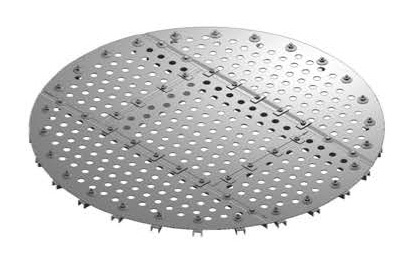

Dual Flow Tray

For Wider Operation Flexibility

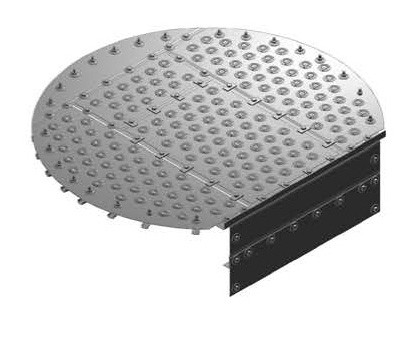

Floating Valve Tray

For Severe Fouling Service

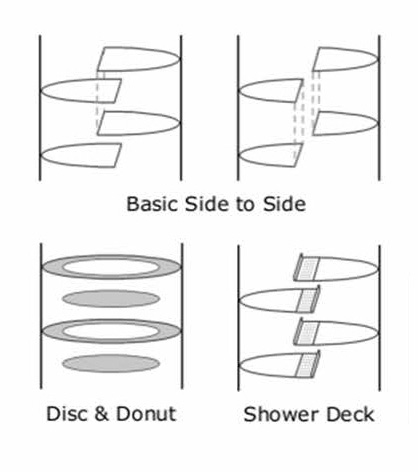

Baffle Tray

Learn More >>

High Performance Trays
Advanced tray technology with fixed valve units
For Lower Pressure Drop

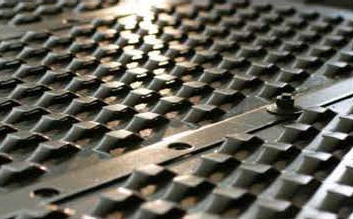

M-Valve Tray

Punched Valve Design

Lower Pressure Drop

Excellent Capacity

For Fouling and Higher Capacity

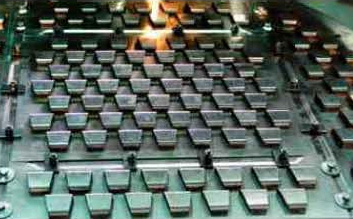

P-Valve Tray

Tapered Valve Design

Excellent Fouling Resistance

Excellent Capacity

For the Highest Capacity

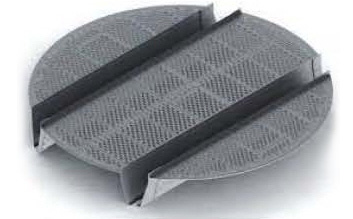

T-Valve Tray

Truncated Downcomer Design

Superior Capacity

Boosting Efficiency

Learn More >>

Tray Design and Construction
Tray tower internals are generally (but not always) removable items of tower hardware provided to achieve a process effect. These include not only trays, but also de-entrainment devices, impingement plates, baffles, pipes, internal sumps, etc.
Hanbit Soltech Corporation designs the attachments such as the tray support rings, the downcomer clamping (or bolting) bars, beam seats and beam clips that hold the trays.
